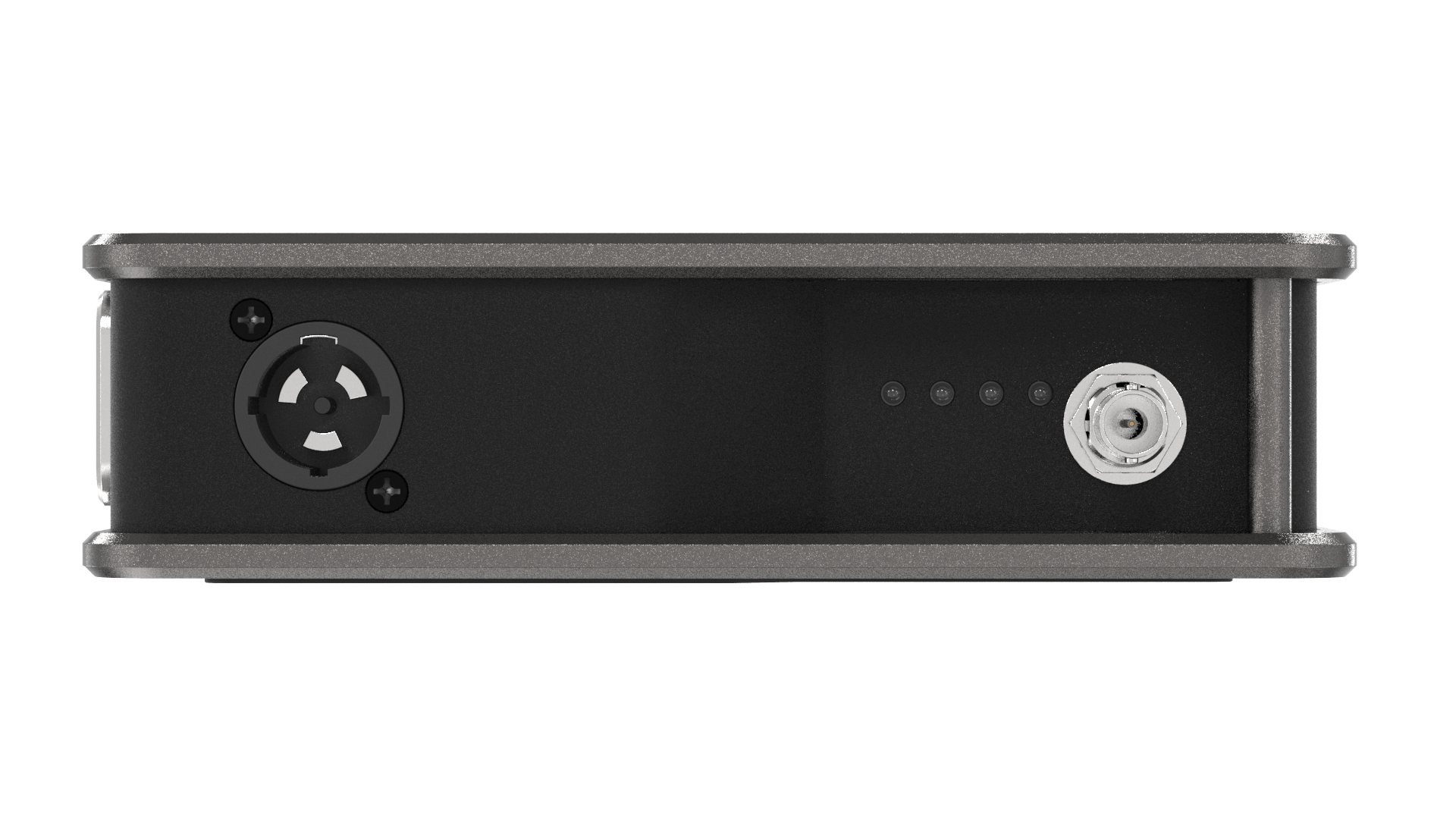

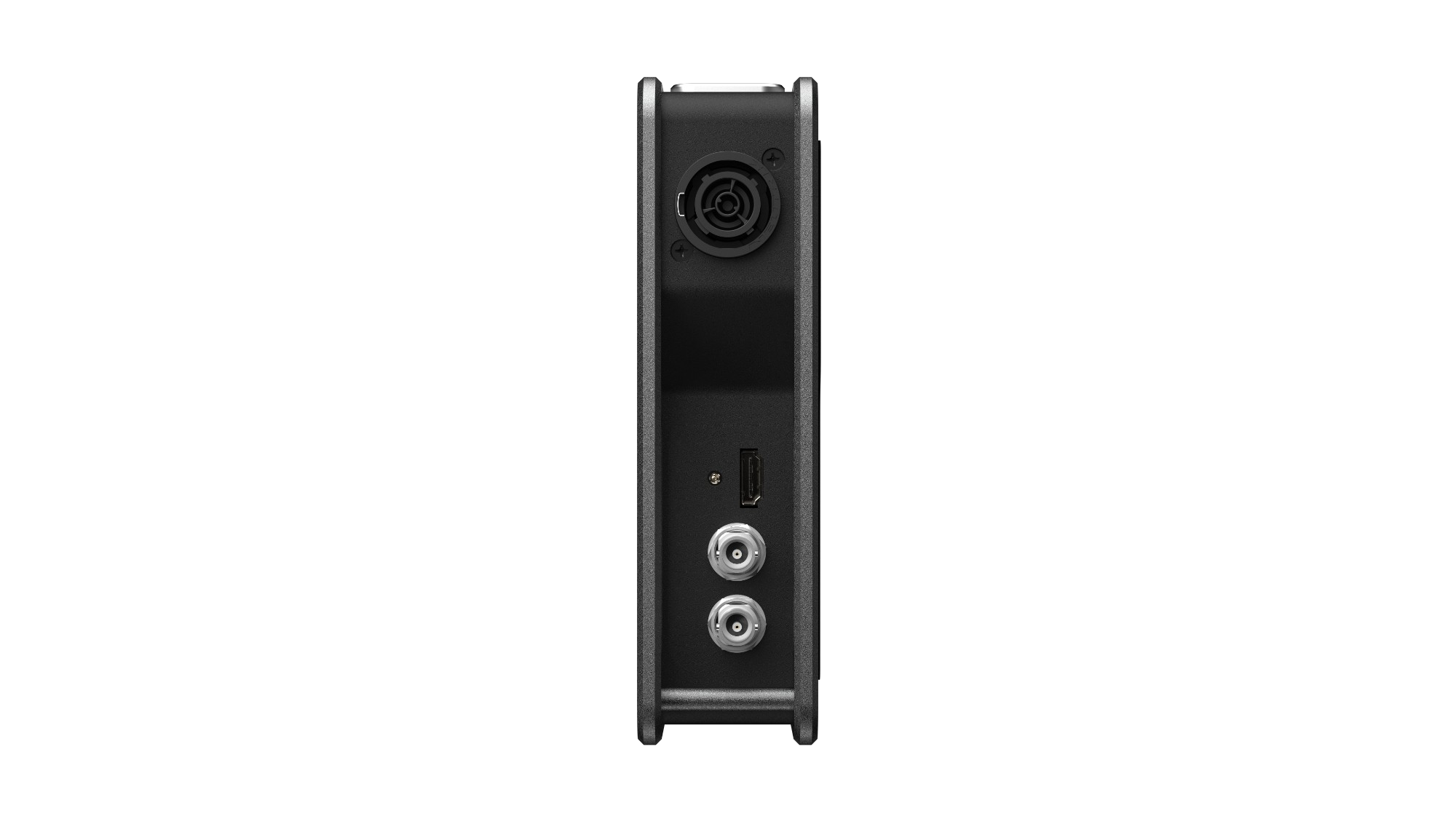

THEATRIXX X-VISION SDI to HDMI

Connections

Video Input

1 x 3G/HD/SD SDI BNC

Video Ouput

1 x HDMI 1.2 type A with locking system

2 x 3G/HD/SD SDI BNC

Supported Signals

3G Format Support

1080p50, 1080p59.94, 1080p60.

HD Format Support

720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30

SD Format Support

525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL.

SDI Video Sampling

4:2:2 and 4:4:4

SDI Audio Sampling

Sample rate of 48 kHz and 24 bit.

SDI Color Space

YUV and RGB

SDI Auto Switching

Automatically detects incoming signal format.

SMPTE Standards

425 M Level A & B, 424 M Level A, 292 M, 259 M
