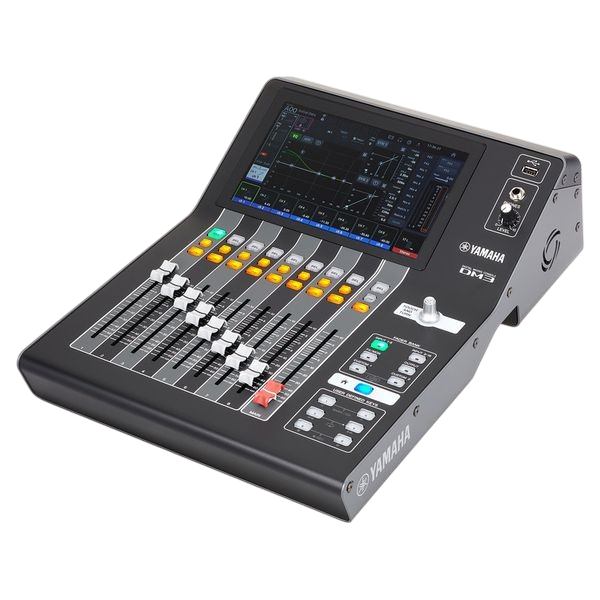

Yamaha DM3 Dante

The DM3 is a compact Dante-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications. The DM3 offers superb sound quality, fast and easy setup and operation, and professional-level features.

• 8 + 1 fader configuration

• 9-inch multi-touch screen

• Input mixing channels: 16 mono + 1 stereo + 2 FX return

• Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)

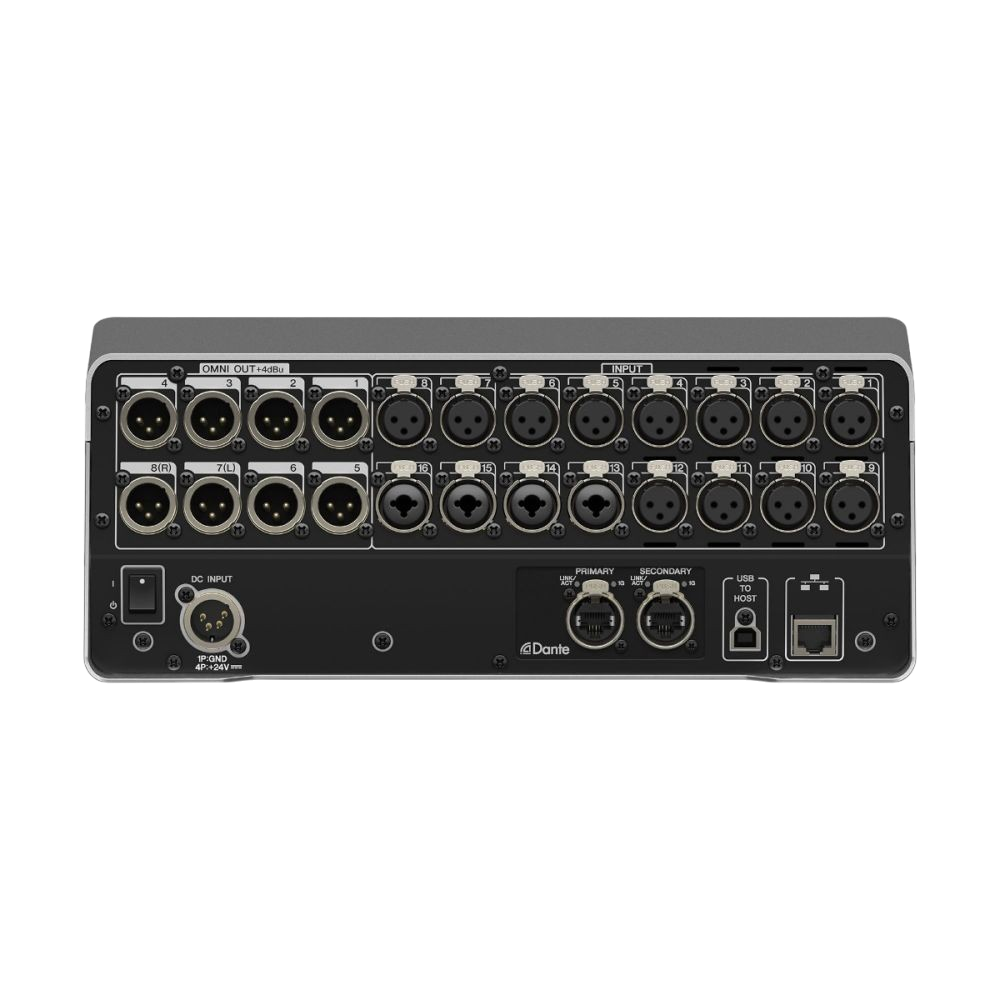

• Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs

• Dante: 16 inputs, and 16 outputs

• USB: 18 inputs, and 18 outputs

• 18 Effects, and GEQ on Mix 1-6 and Stereo channels

• Sampling rate: 48kHz/96kHz

• Dimensions (W x H x D): 320 mm × 140 mm × 455 mm

• Net weight: 6.5 kg
